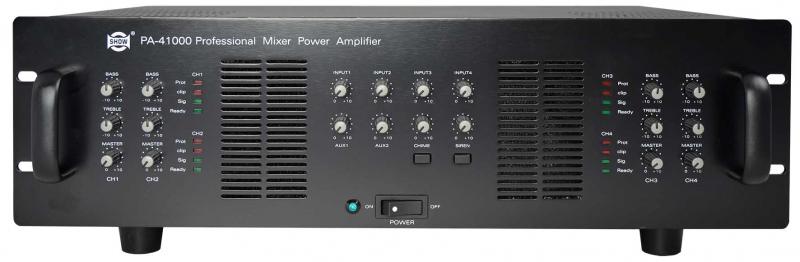

Description
| Power | AC 110V / 60Hz or AC 230V / 50Hz for choice |
| Inputs 1 ~ 4 | Sensitivity: Mic: -55dB balance Line: -16dB balance High filter: 150Hz (-3dB) Phantom: 48V Telephone paging function sensitivity: 120 mV |
| Frequency response | Mic: 60Hz ~ 12KHz (-3dB) Line: 30Hz ~ 18KHz (-3dB) Tel: 120Hz ~ 5KHz (-3dB) |
| Thd | <0.5% |
| S / n | Mic:> 60dB Line:> 70dB Tel:> 60dB |
| Priority for MIC. 1 | Sensitivity: -55dB balance |
| Tone Control | Treble: ± 10dB at 10KHz Bass: ± 10dB at 100Hz |
| Output impedance | Mono: 8Ω |
| Output voltage | 25V, 70V, 100V |
| output power | 250W x 4 at 4Ω, 8Ω |
| Siren function | Manual switch on the front panel, remote control terminal on the rear panel |
| LED indicator | 4 for operating mode 4 volume indicators (LED Type), volume control, volume control |
| Dimensions (WxDxH) | 483x133x350mm |
| Weight | 25.25 kg |
