| Model |

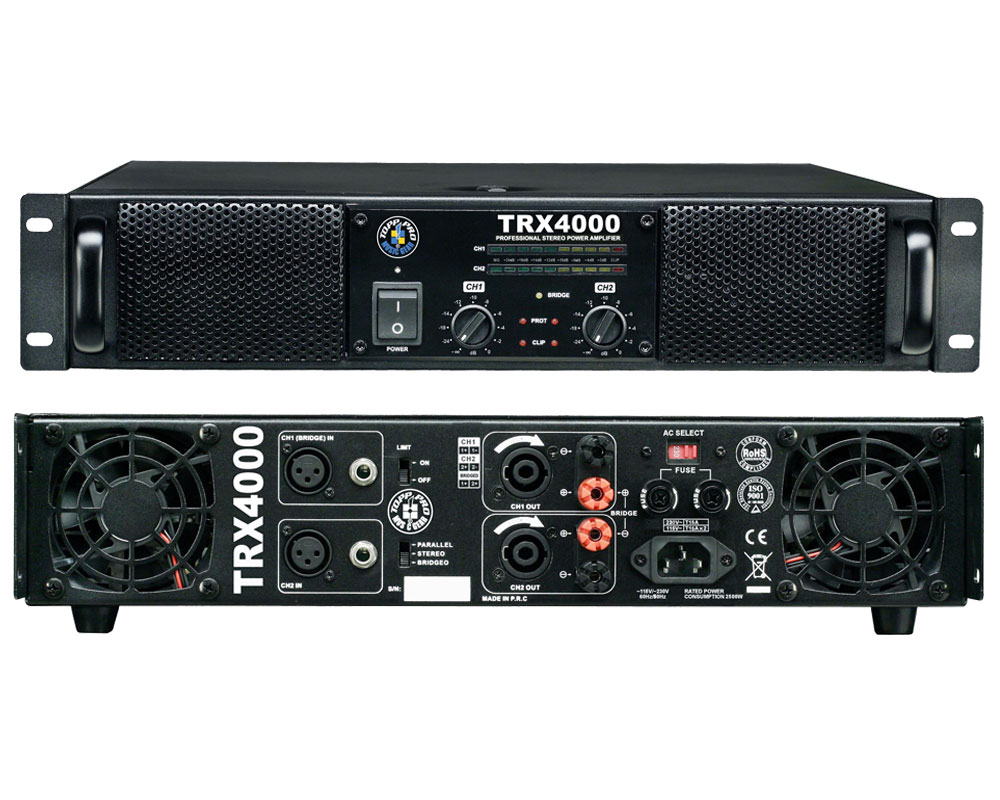

TRX 4000 |
| Stereo Mode |
| 8O/ 1KHz /1% THD Continuous |
700W*2 |
| 4O/ 1KHz /1% THD Continuous |
1200W*2 |
| 2O/EIA 1KHz /1% THD Peaks |
2800W*2 |
| Bridge Mono Mode |
| 8O/ 1KHz /1% THD Continuous |
2080W |
| 4O/ 1KHz /1% THD Peaks |
5000W |
| Max. Continuous Voltage Swing THD=1%, 1KHz |
79V |
| Voltage Gain,ref.1KHz |
36dB |
| Max. Power Consumption output power @4 ohms |
2500W |
| Dimension (cm) |
61.1 x 59.4 x 18.6 |
| Weight (kg) |
25.1 |
| Single to Noise Ratio A-weighted: |
> 105dB |
| Residual Noise, A-weighted: |
< -65dBu |
| Input Sensitivity: |
1.1V |
| Total Harmonic Distortion: |
< 0.05% |
| Crosstalk ref.1KHz at rated output power: |
> 60dB |
| Frequency Response: |
20Hz~20kHz ±1dB at 10dB below rated output power |
| Input Impedance: |
10kohms unbalanced, 20kohms balance |
| Damping Factor, 1kHz: |
> 500 at 8ohms |
| Slew Rate: |
40V/µS |
| Power Requirements: |
100V, 120V, 220V, 230V, 240V, 50/60Hz (factory configured) |
| Protections: |
Turn-on delay, Over-heat, Short-circuit, DC, over-current, mismatched loads |
